On Sale


Sale price


  • - 17%
  • Regular price $199.00
    ( / )
    Shipping calculated at checkout.

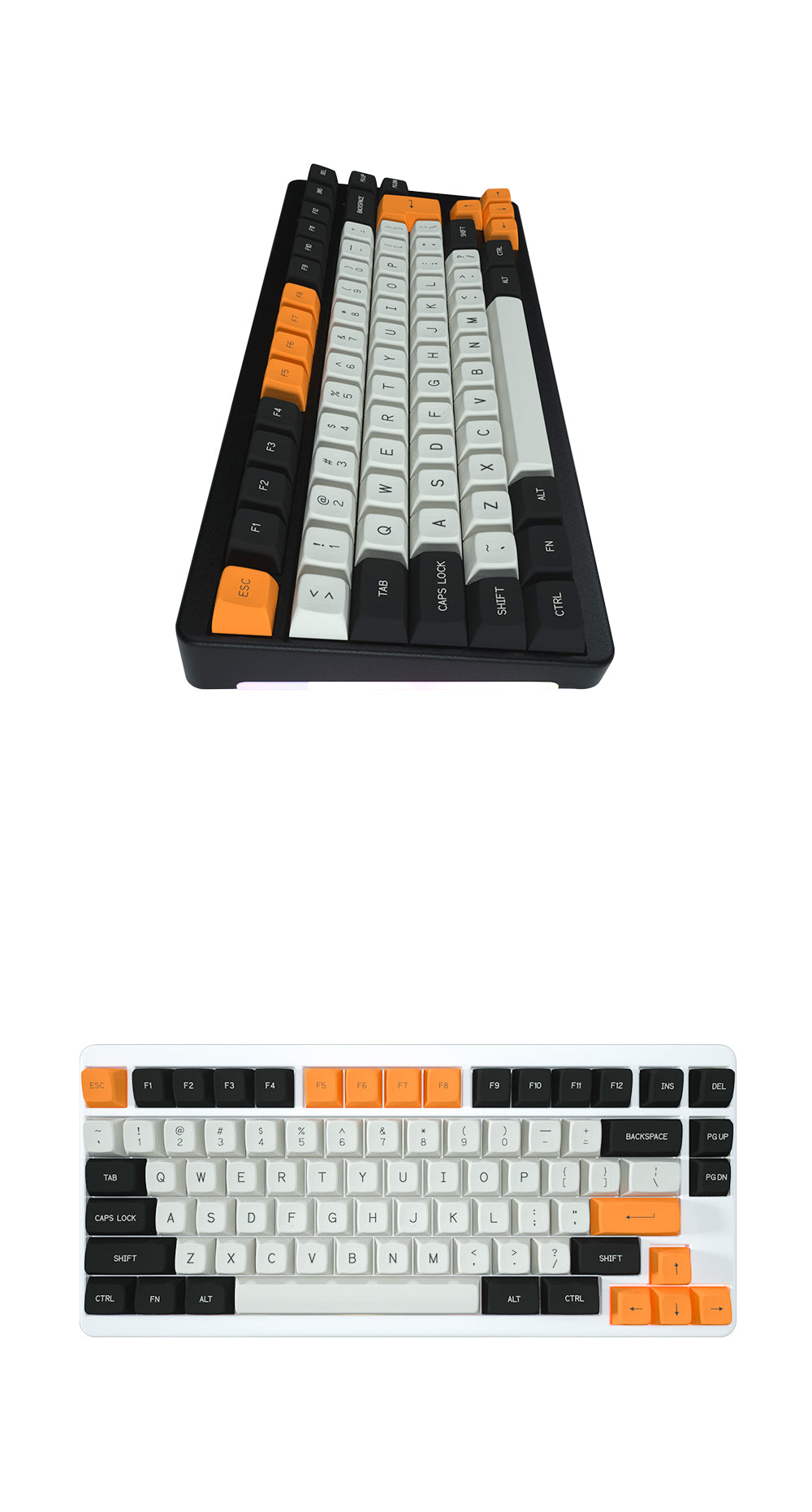

    Black ANSI
    White ANSI
    Pink ANSI
    silver ANSI
    Black ISO
    White ISO
    Pink ISO
    silver ISO
    Red ANSI
    purple ANSI

    PCB manuals as below

    ID80 V2 ANSI

    ID80 V2 ISO

    Designed by idobao team.

    Featuring a seamless case design made from anodized aluminum, it also incorporates an integrated plate which holds switches in place.  QMK programmable for custom key commands, and outfitted with a USB-C port for fast connectivity, this board is ready for work or play.

    product name

    IDOBAO--ID80V2 Keyboard kit


    Product description

    Sized just right at a 75%—a compact configuration to feature the top function row—the ID80V2 mechanical keyboard kit from IDOBAO makes a great fit on any desk.This board is both durable and easy to build. Its PCB also features Kailh hot-swappable sockets, which allow users to quickly change switches without a soldering iron,Copper weight added at the bottom,Equipped with both ANSI and ISO layouts.

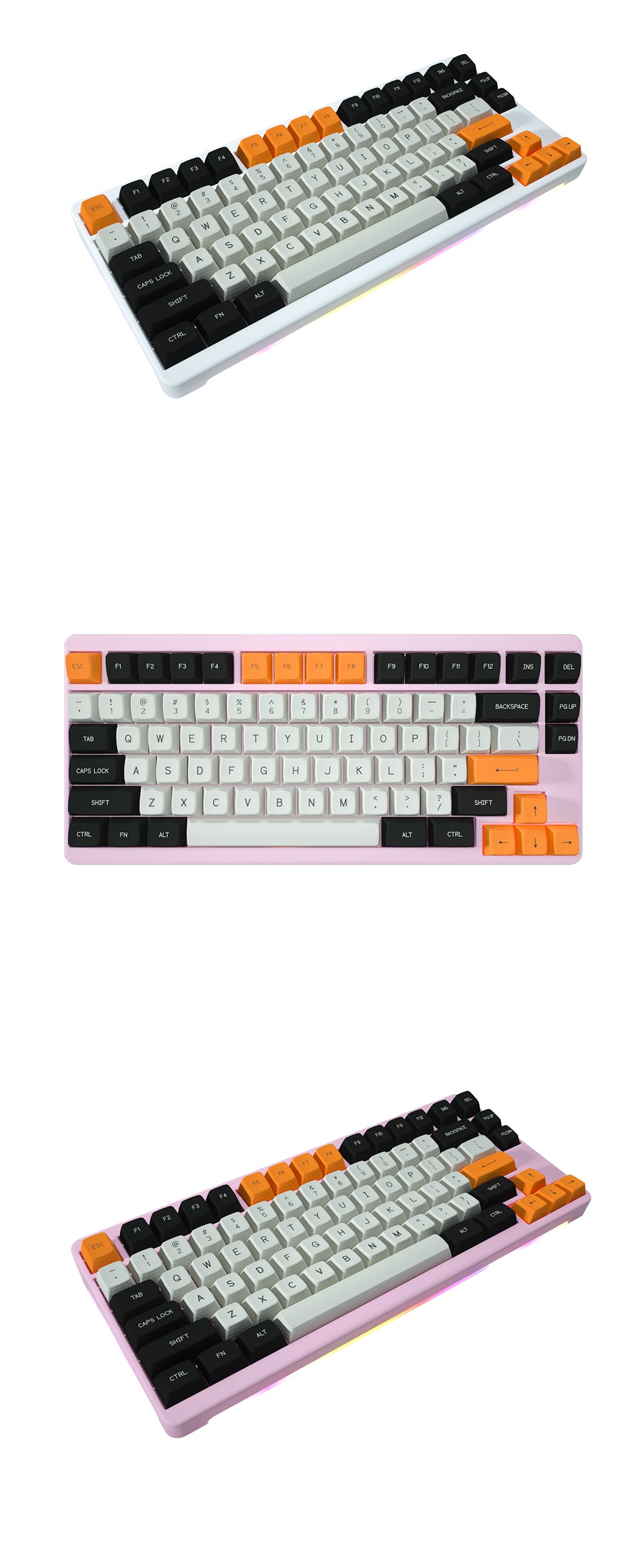

    Color selection

    (Anodic oxidation process):  black - silver

    (Power coat process):  white - Pink

    Note: due to the influence of process, the color of pictures and physical products can not be guaranteed to be restored 100%



    Sandblasting Anodized Aluminium

    Power coat process



    USB Type C connection

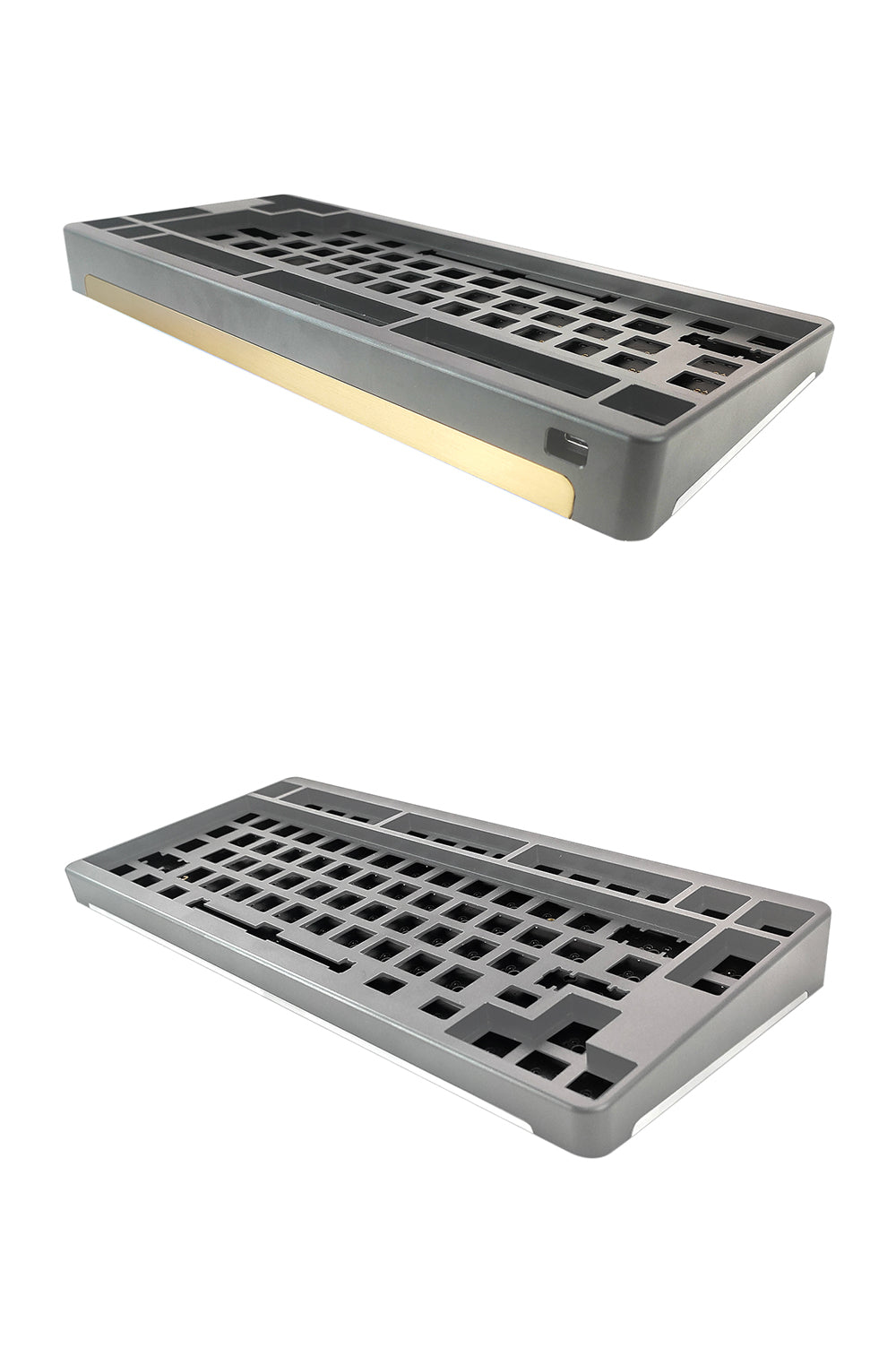

    Case material:  Aluminum

    Bottom material:  Acrylic

    Angle: 6 degrees

    Weight: 1.36 kg(Weight of upper shell andbrass counterweight bottom shell)

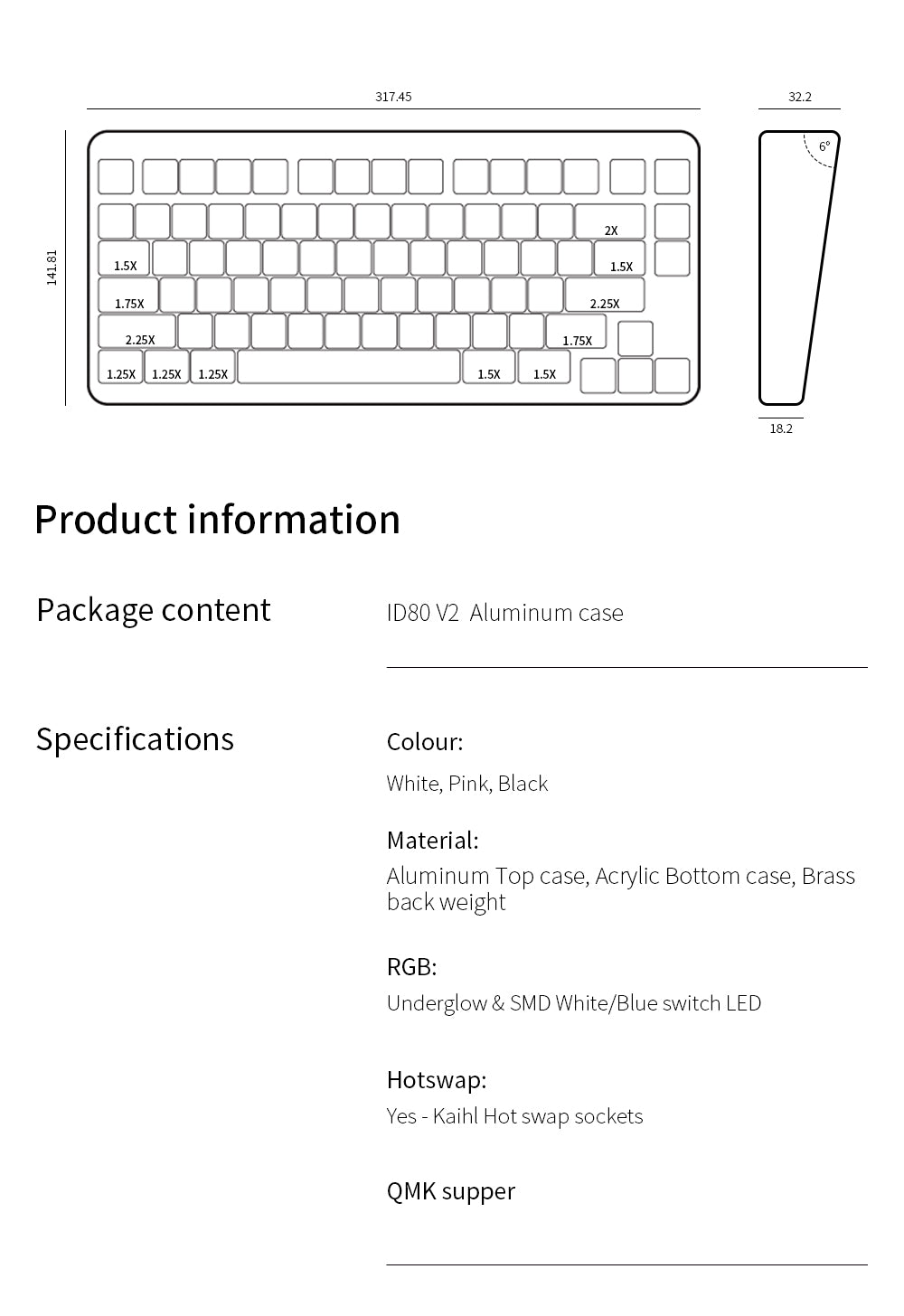

    Dimensions:  Width 14.2cm x length 31.3cm(Manual measurement)

    Integrated plate ANSI layout or ISO layout

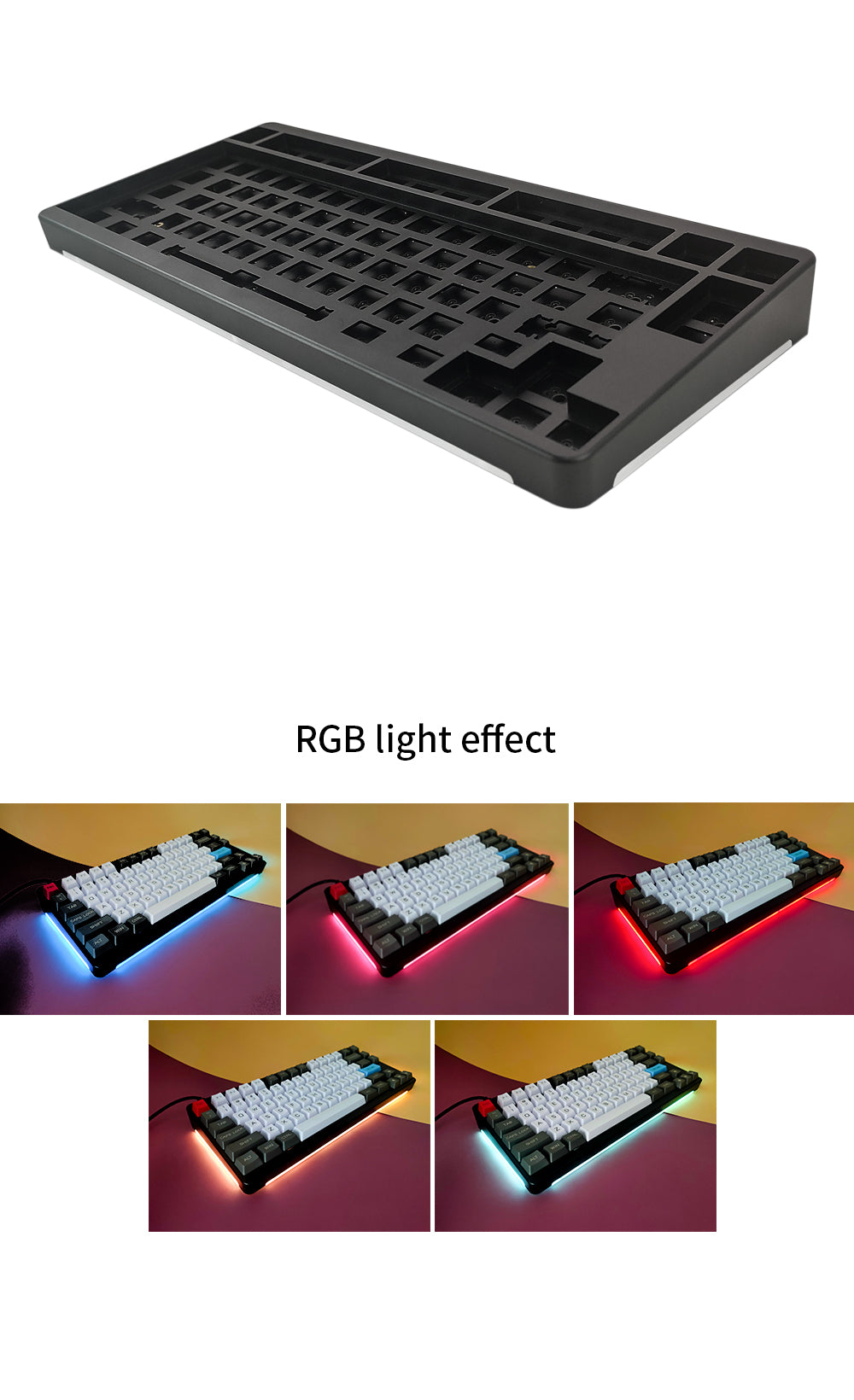

    Per-key white LED

    Programmable with QMK firmware


    only inclue Keyboard kit,Not include switch with Keycaps



    1 * Top case (Aluminium)

    1 * Bottom case (Acrylic)

    1 * brass counterweight

    1 * Kailh Hot swap PCBA

    6 * Phillips screws(M2x10)

    14 * gold-plated cross screw(M2X4)

    2 * electric resistance

    3 * Kailh Sockets

    4 * stabilizer(ANSI)           3 * stabilizer(ISO)

    1 * USB Type-c data cable

    1 * foot pad
